Steel Standard & Grades



Indian

Japanese

American

German

Commercial

IS:513 ‘O’

JIS G 3141 SPCC

A 366

DIN 1632 St 12

Drawing (D)

IS:513 ‘D’

JIS G 3141 SPCC

A 366

DIN 1632 St 12

Deep Drawing (DD)

IS:513 ‘DD’

JIS G 3141 SPCD

A 619

DIN 1632 St 13

Extra Deep Drawing (EDD)

IS:513 ‘EDD’

JIS G 3141 SPCEN

A 620

DIN 1632 St 14

Super Extra Deep Drawing ( Super EDD)









Besides the above mentioned grades we can provide following grades :

Low Carbon Grades

Steel Standard as per ASTM, SAE, JIS, 3131, JIS, 3135, BS 1449



D/ DD/ EDD / Super EDD / IF Grade



ST-42, ST-52, SS 400, DC 01, HSLA



Steel for Enamelling

Medium Carbon Grades

MC 11, MC-12, C-55, C-62, C-45, C-80, EN-42 J EN-8, HC-14, SAE 1045, EN-47, 50CRV4, Spring Steel Strips

Any other customer specified Carbon Steel Grade

Top

Applications of our Products

S.No.

Segment

Product & Application

1.

Automobiles

Inner Critical Components

Outer skin Panels

Reinforcement & Outer Body Components.

2.

Appliances

Home Appliances

Refrigerator Doors

Side Panels

Washing Machine Panels

3.

Electrical Panels

Computer Cabinets

Electronic Equipment Cabinets

Switch Gears

4.

Engineering

Air-Conditioners & Ducting

Boiler Panel Strips

Finning Strips for Heat Exchanger

Motors

Pollution Control Equipment

Tubes

Transformers

Ventilation

5.

Packing

Barrels & Containers

Drums

6.

Furniture

Chairs & Office Furniture Components etc.

7.

HRGC Strips

Heat Exchangers

Taper Roll Bearing Cages

Packaging

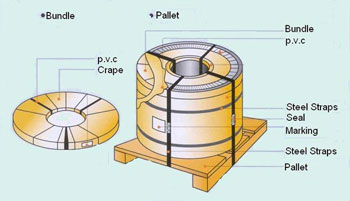

We can provide packaging in Pelletized form, Coils form , Strips form & in Sheet form. All Packaging have an initial layer of transparent plastic wrapping, second layer of thick plastic wrapping & final layer of hessian cloth wrapping. This ensures complete cover from moisture thus preventing any corrosion even at the surface for a long duration of time. Packing using VCI Paper is provided for Exports.

Quality

 ASPL has the following state-of-the-art quality testing facilities:

Spectrometer   Tests the chemical composition of steel
Erichsen Cupping value testing machine   Tests the ductility of steel
Hardness Testing Machine   Tests the hardness of steel
Universal Testing Machine   Test the Elongation, Tensile Strength & Yield Strength
Metallurgical Microscope   Tests the Microstructure including Grain size & helps us to   maintain Grain size norms as per ASTM Grain size no. 1 to   10.
Roughness Average testing machine (Ra Value)   Test the surface roughness of the Strips & Coils.
Full Chemical Lab   For Chemical Testing

 ASPL gives Standardized Test certificate as per EN 10204 3.1b for all its supplies.
